Tethered water supply
Long uninterrupted operation without any limitation of water tank capacity.
PARTDRO Cleaning Drone Series D15R
Multi-functional Washing UAVBorn for cleanliness.
Efficient cleaning in the air & High-altitude unmanned safe operation & Multi-scenario application. The D15R brings controlled, high-pressure cleaning to building facades, photovoltaic panels, wind turbines and other high-altitude surfaces.
Up to 20 MPa peak pressure
Up to 1,000 m²/h light cleaning
100 m tethered water hose
Born for cleanliness.A modular aerial cleaning platform built for repeatable high-altitude work.
15 L/minSpray flow rate
100 mHose length
45 minCurtain wall flight time
55 minPV panel flight time
12 m/sMax wind speed
High efficiency
1,000 m²/h high pressure fast cleaning.
Artificial cleaning (spiderman, cradles) is still the main cleaning method, facing operational risk, inefficient cleaning, poor operational flexibility and high cost. The D15R cleaning drone features a modular design with two types of cleaning attachments and four nozzles of different angles, providing a convenient, efficient, multi-scenario aerial high-pressure cleaning solution.
1,000 m²/h max. Quick Wash
Fast washing under hovering, D15R can be equipped with dual swinging spray booms optionally for 1,000 m²/h coverage.
20 MPa Instantaneous Peak Pressure
Fast and effective removal of stubborn stains with high-pressure washing.
Rapid installation and deployment
Folding design for easy transportation and storage; quick release mode for 1-minute deployment.
4 different nozzles as standard
0°, 15°, 25° and 40° spray angles — one nozzle pipe, multiple water types, switching of water types from 0-40° at will.
Adaptable to 2 different loads
D15R can be adapted to two types of cleaning attachments: adjustable-angle nozzles and oscillating nozzles.
Multi-scenario — Modular design
Adaptable to multiple configurations.
The D15R cleaning drone features a modular design, compatible with two types of cleaning attachments: adjustable-angle nozzles and oscillating nozzles. Equipped with four nozzles of different angles, it provides a convenient, efficient, and multi-scenario aerial high-pressure cleaning solution.
A

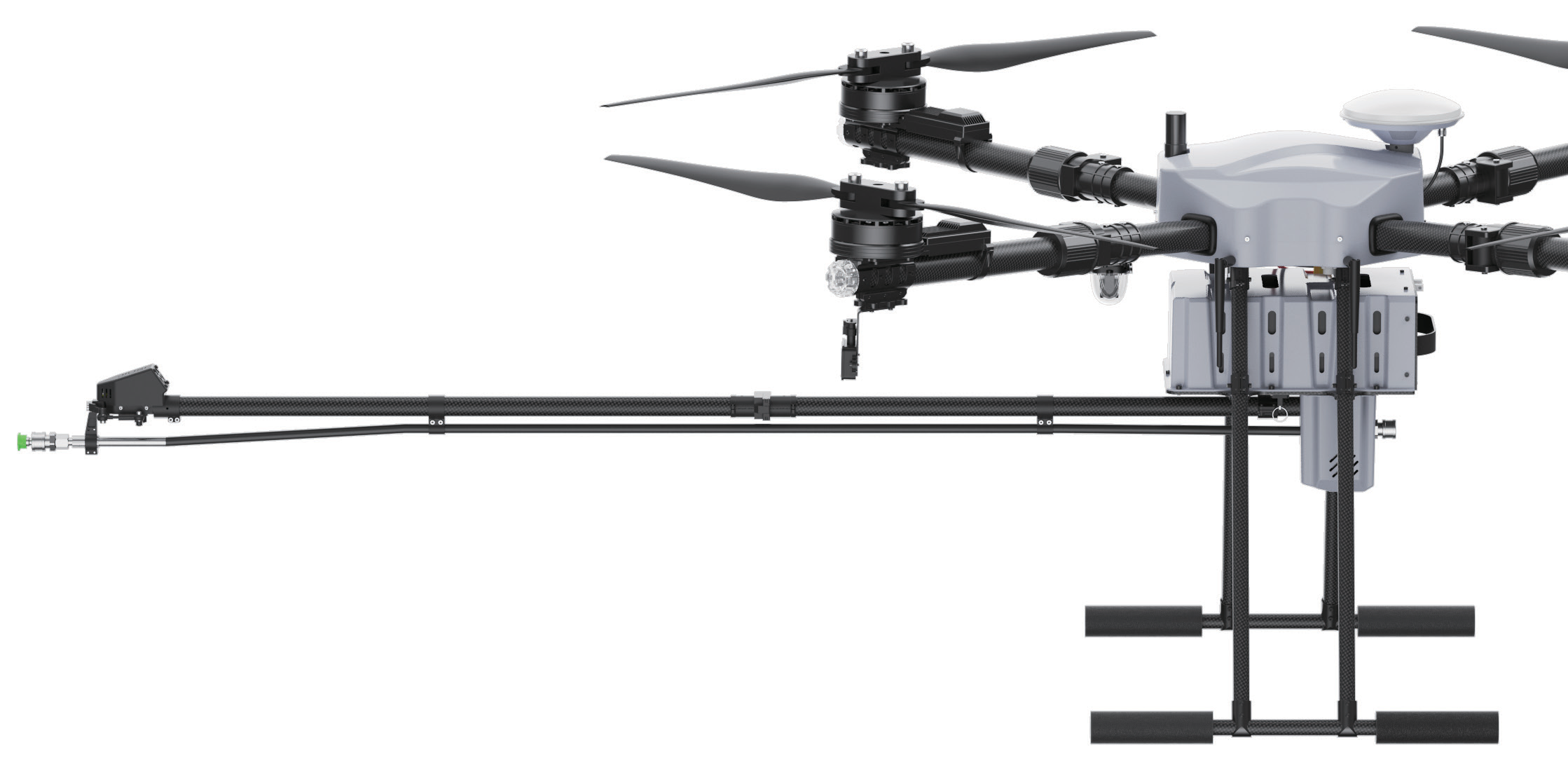

Water nozzle (Fixed)
1500 mm nozzle keeps the fuselage away from the wall, safe and reliable. The nozzle can swing left and right horizontally.
B

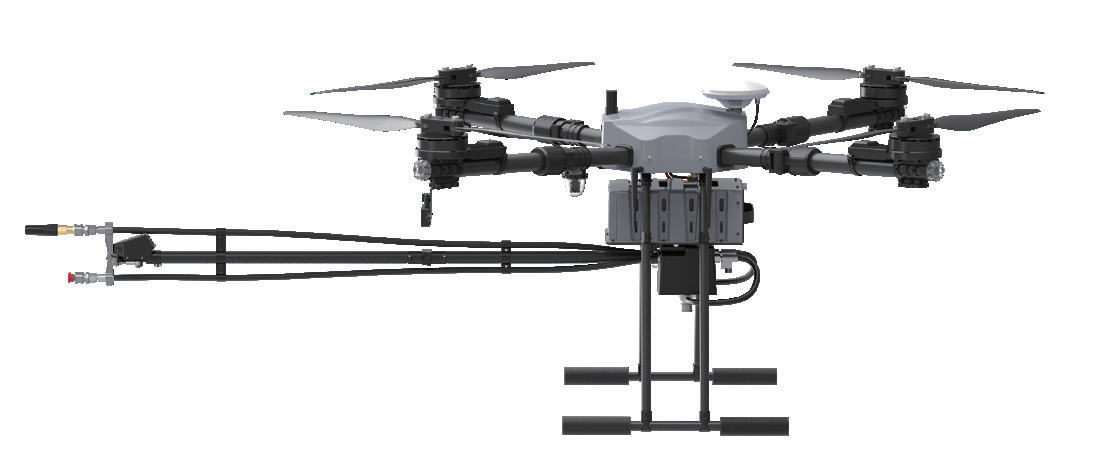

Oscillating nozzle
The swing range of the nozzle is ±15°, and the speed of the swing can be adjusted on the remote control according to the stain level.
C

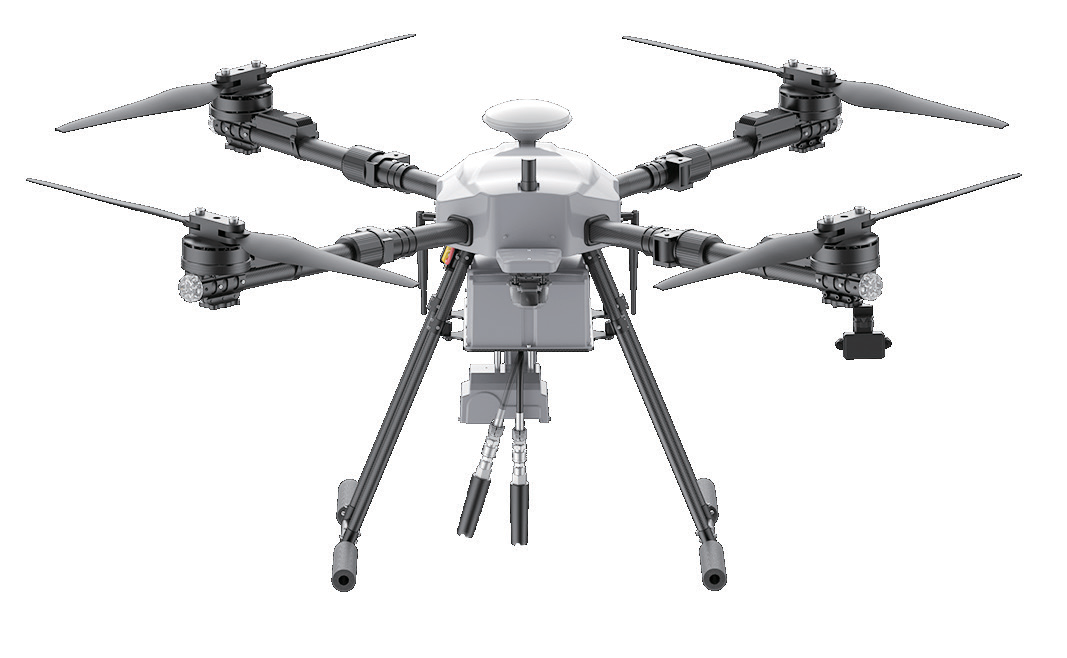

Dual swinging spray boom
Optional kit combines foam and water nozzles for one-key remote switching without landing. Completes full foam softening and water rinsing in one flight.
Cleaning output
1,000
1,000 m²/h maximum light-cleaning capacity
The product brochure specifies 500 m²/h for deep cleaning. Actual output depends on the work surface, contamination level, cleaning liquid and operating conditions.
Peak water pressure20 MPa (instantaneous)
Rated water pressure10 MPa
Spray flow15 L/min
Nozzle-to-surface distance2-3 m
Maximum take-off weight≤ 24.9 kg
Multi-scenario — Adaptable to multiple nozzles
4 types of spray nozzles, tool-free installation.
The modular nozzle design meets the needs of customers for diversified cleaning tasks. One nozzle pipe, multiple water types — switching of water types from 0-40° at will.

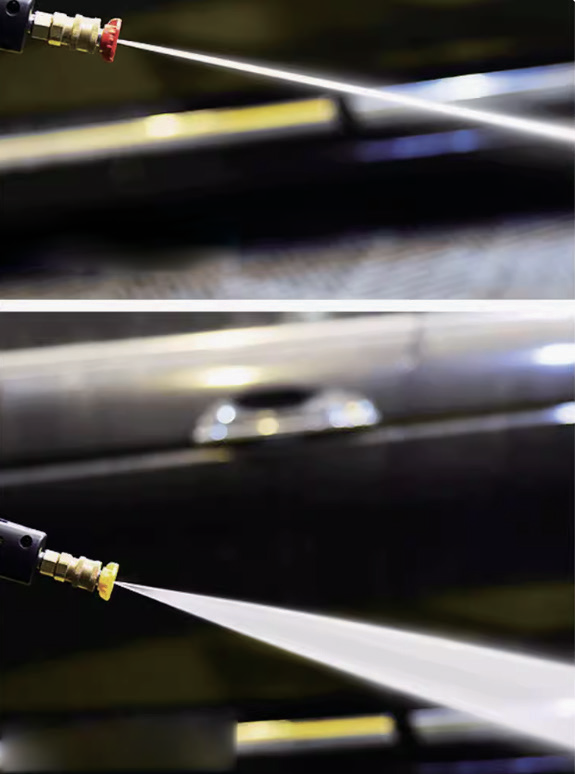

0° high jet pressure
For flushing crevices, stubborn stains, etc.
15° fan-shaped water jet
For quick rinsing of stains.

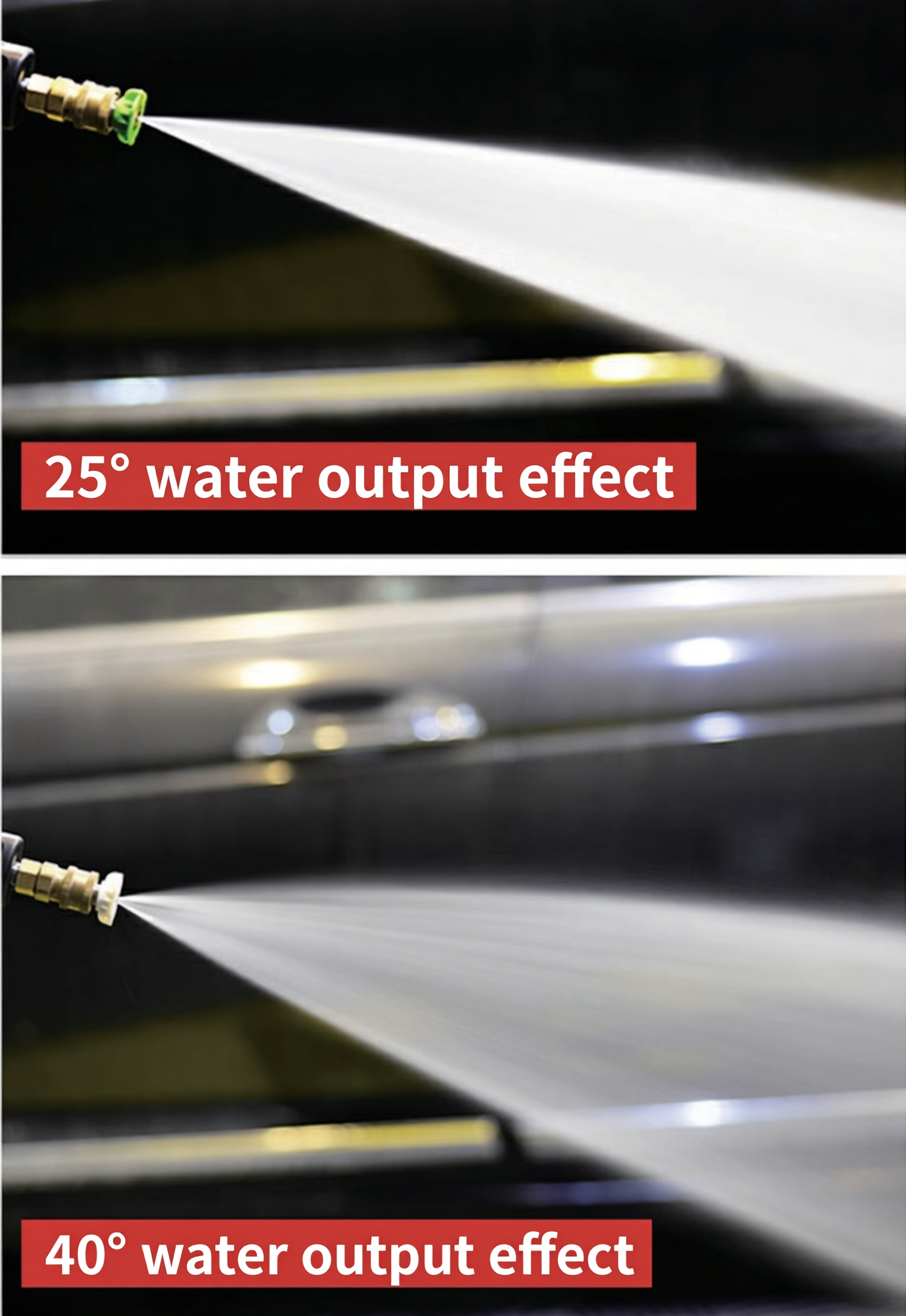

25° fan-shaped water discharge
Rapid rinsing of sand and soil, higher efficiency.
40° broad fan
For rinsing large areas after spraying detergent.

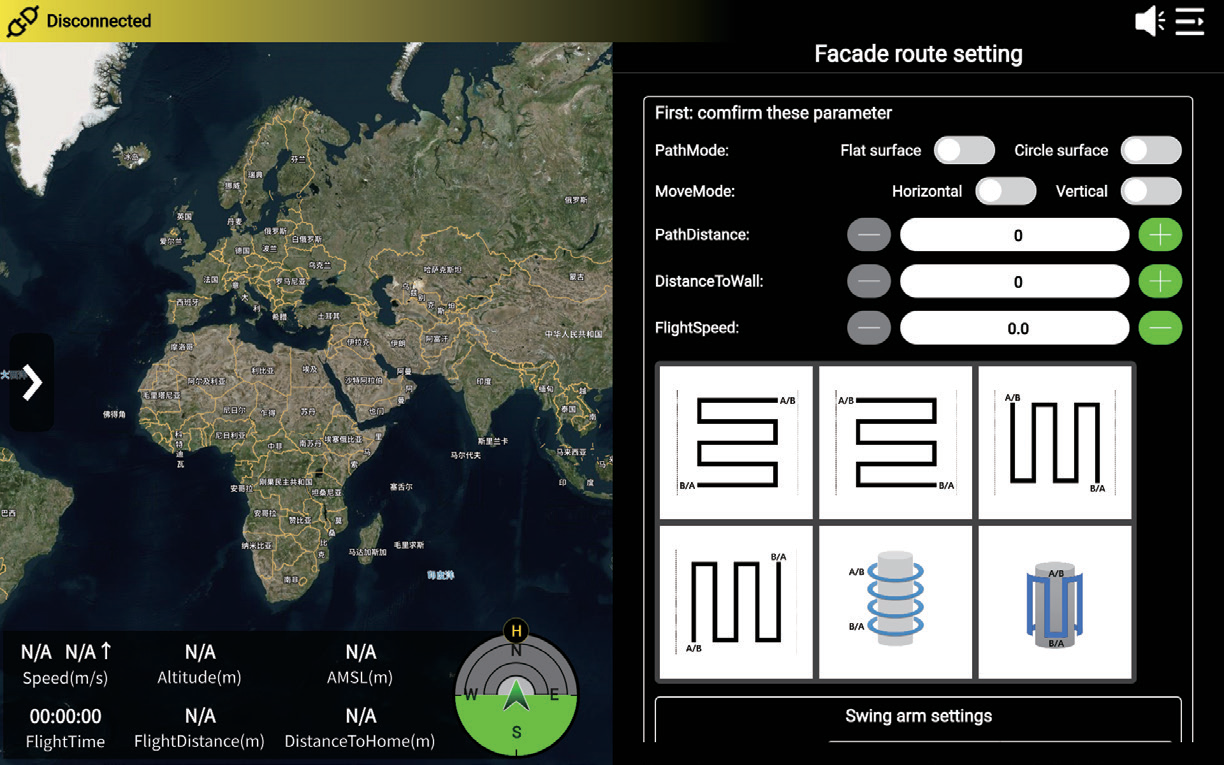

Intelligence — Intelligent route planning
D15R 5.0 — Autonomous operation with route planning.
The new upgraded version D15R 5.0 adds intelligent route planning to achieve autonomous operation. It can set routes for different cleaning scenarios, greatly improving the work efficiency and flexibility of the cleaning drone.
01
Comprehensive coverage without blind spots
The entire facade can be accurately covered according to the set route and height, avoiding omissions and blind spots that may occur during manual inspection or ordinary flight.
02
High precision with RTK
Combined with advanced positioning technologies such as RTK positioning, the UAV can maintain a stable flight attitude and position accuracy, thereby obtaining high-precision images and measurement data.
03
High degree of automation
The route can be planned in advance through the ground control station, and the drone can fly automatically according to the preset path without real-time manual control.
04
Remote operation
The operator can control and monitor the drone from a safe location away from dangerous facades, with timely measures in case of emergency.
Safety — Manual-free high-altitude operations
Dual RTK + wall-following radar for secure flight.
Enabling manual-free high-altitude operations. Replacing manual overhead work with remote-controlled drone operation, built-in dual RTK modules for centimeter-level positioning, and an intelligent perception system with wall-following radar.

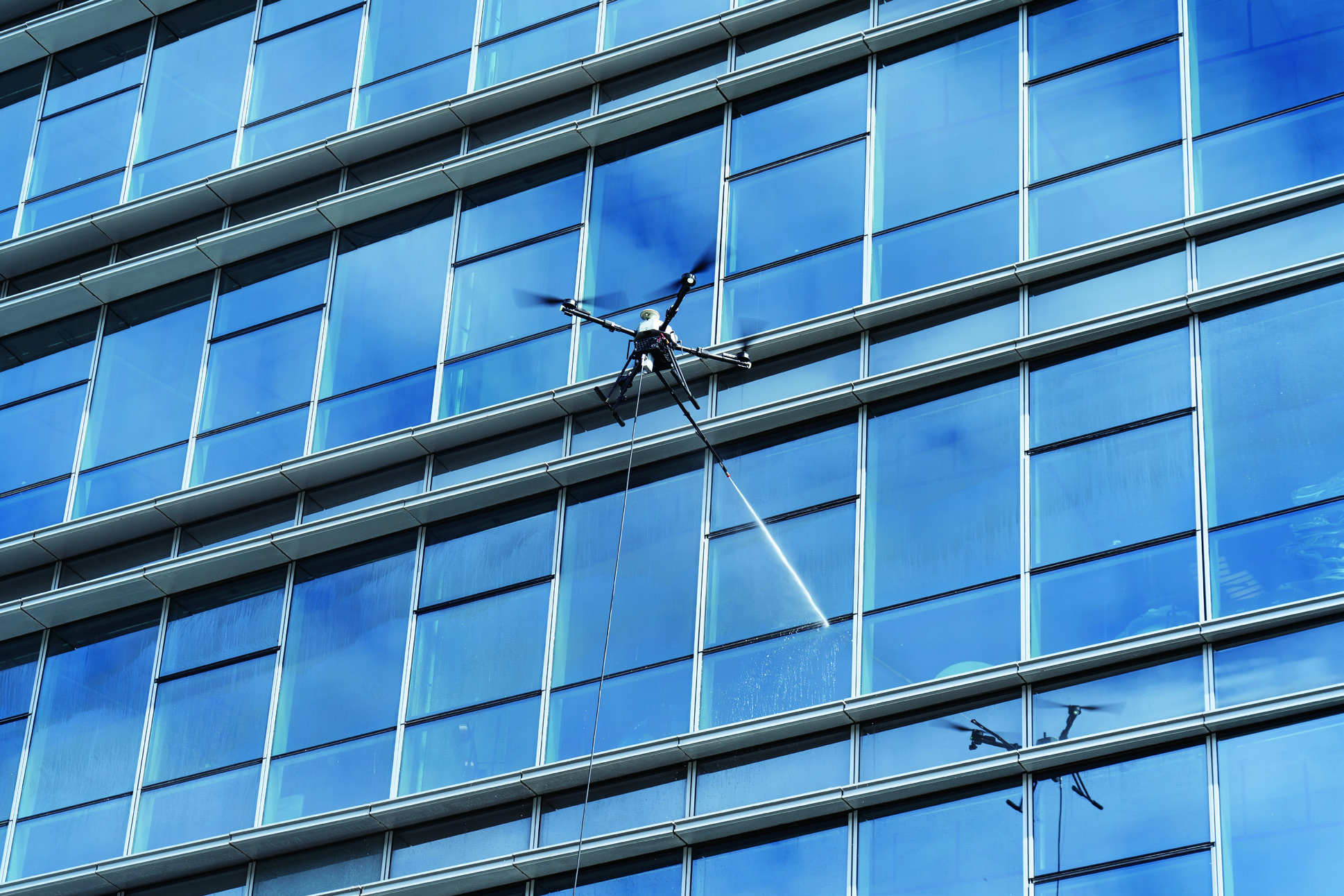

Replacing manual overhead workRemote control of personnel can complete all kinds of complex cleaning tasks at high altitude, eliminating the potential risks of working at height.

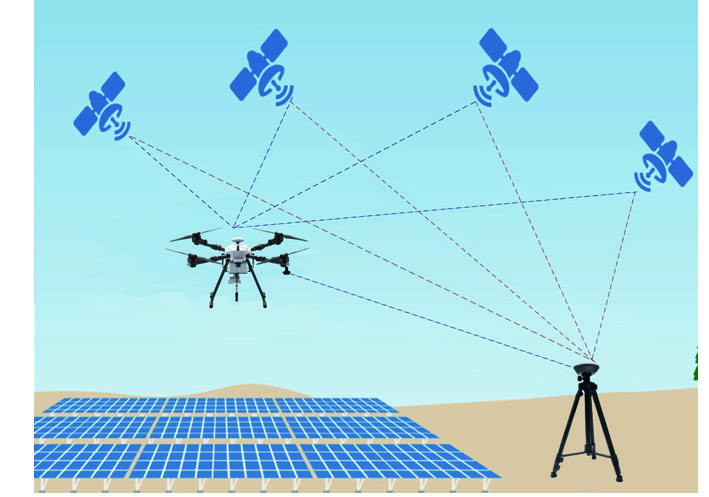

Built-in high-precision dual RTKEquipped with high-precision dual RTK modules, it can output centimeter-level positioning data, ensuring accurate and reliable positioning and safe operation.

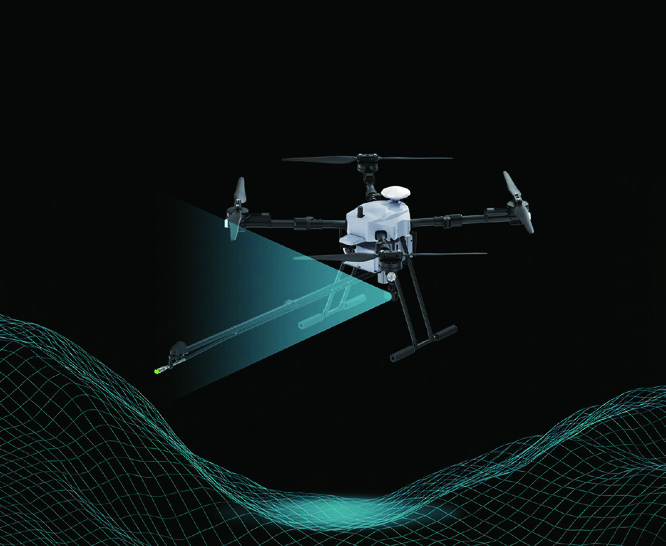

Intelligent Perception SystemFront-mounted wall-following radar senses real-time distance information ahead, maintains a safe distance, and ensures more secure flight.
Multi-scenario — Stable operation at high altitude
Various nozzles, covering difficult angles.
Modular design for different loads, stable operation at high altitude, flexible operation, and multi-angle coverage of bottom and top surfaces.
↗
Modular design
Optimal mounts and nozzles can be customized according to different tasks to meet the configuration needs of various altitude cleaning requirements.
↔
Stable operation at high altitude
Comes with dual RTK and a 'Perception-Decision-Execution' closed-loop system, adapting to various height-based cleaning requirements.
＋
Flexible operation
Flexible traveling, not afraid of narrow building distance and other complex building spaces.
Multi-angle coverage of bottom and top surfaces
Supporting different configurations, it can easily cover the bottom and top surfaces and other complex surfaces.
Comparison of D15R and traditional manual work operation
D15R offers significant advantages in safety, efficiency and cost.
| D15R Aerial cleaning System | Traditional manual operation | |
|---|---|---|
| Security | Drone operation replaces manual work at height, greatly reducing the risk | Manual operation has potential safety hazards |
| Cleaning efficiency | 1,000 m²/h, high-pressure fast cleaning, support uninterrupted operation | Slow cleaning speed, long operation time |
| Cost | One-time equipment investment & low long-term operating costs | High labor cost, each time requires a lot of manpower and time investment |
| Cleaning effect | 20 MPa high-pressure cleaning, with professional cleaning agents, thoroughly remove stubborn stains and mold spots | Difficult to clean thoroughly, affecting the aesthetics of the building and the life of the material |
| Installation time | Quick installation for 1 min | Time-consuming and labor-intensive: to set up scaffolding or cradles |
| Operational flexibility | 2 types of mounting, 4 nozzles, multi-angle and multi-scene coverage | Poor flexibility, difficult to cover all work surfaces |
Case studies
Real-world maintenance projects.
The product brochure documents use cases across building facades, photovoltaic panels and wind turbine environments.
Case study

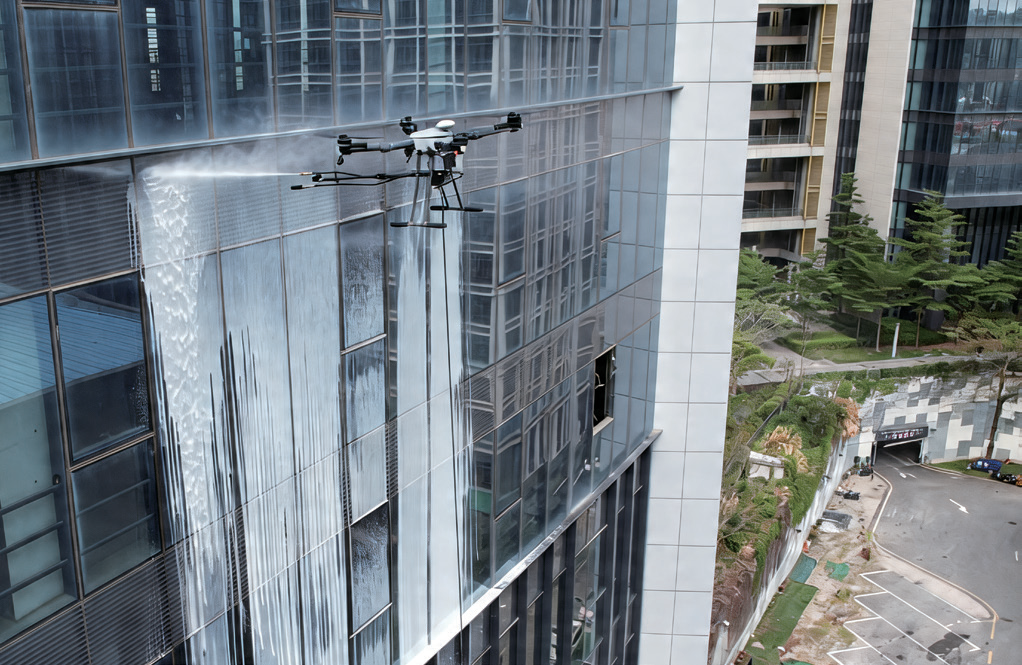

Maintenance of a building facade in Dongguan
Case study

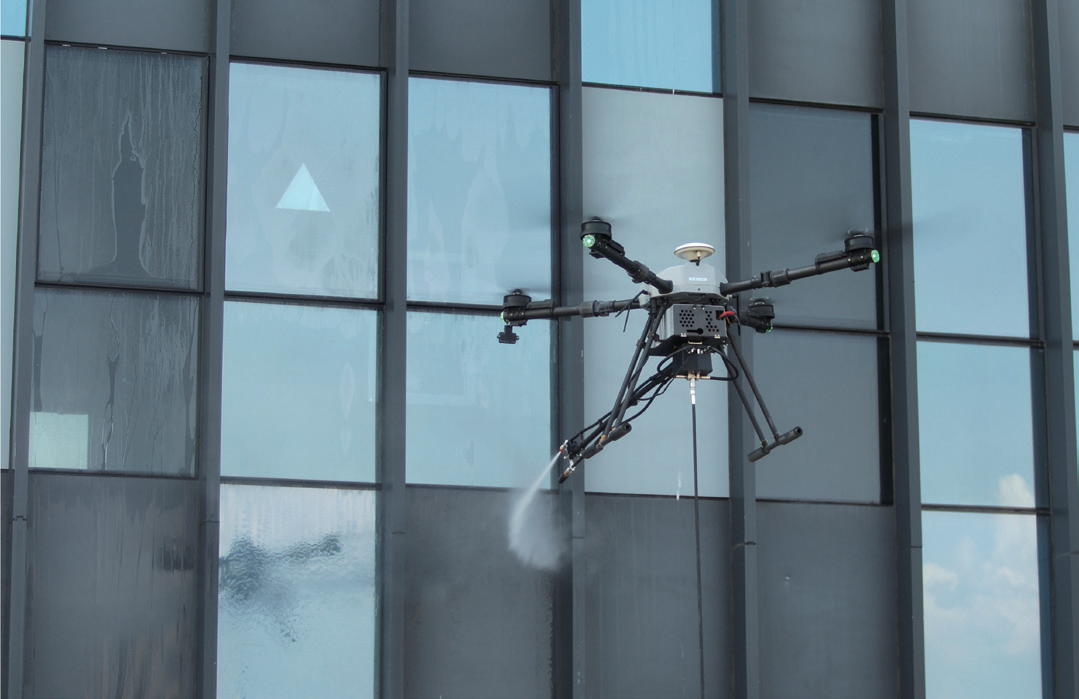

Exterior wall cleaning of a building in Songgang
Case study

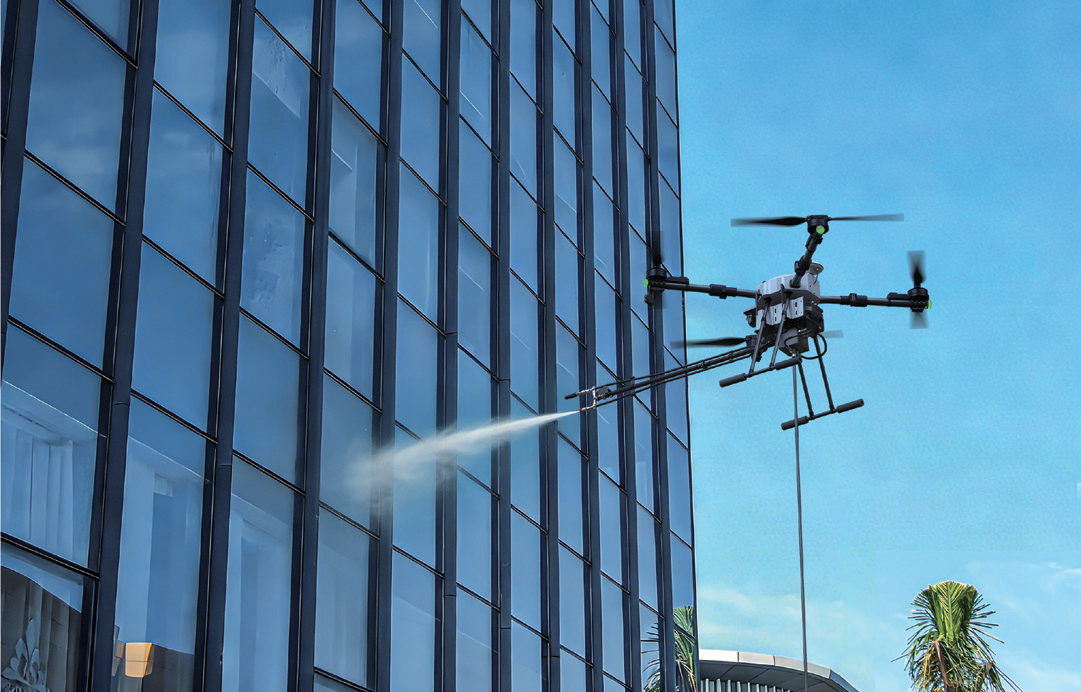

Exterior wall maintenance of a building in Shenzhen
Case study

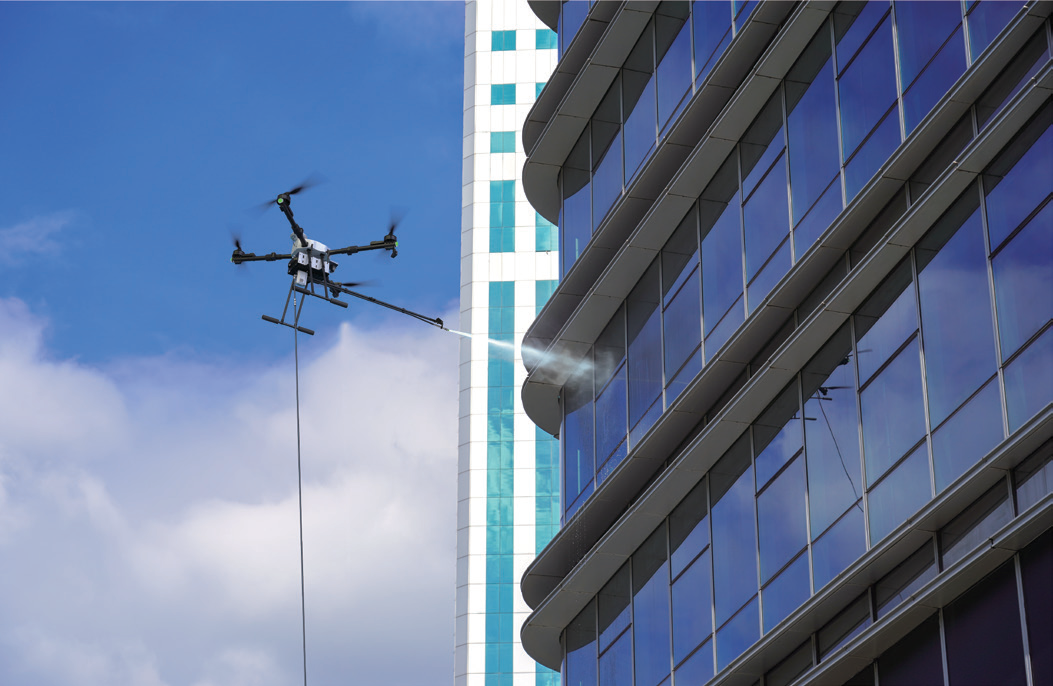

Building maintenance for a building in Shenzhen
Operation

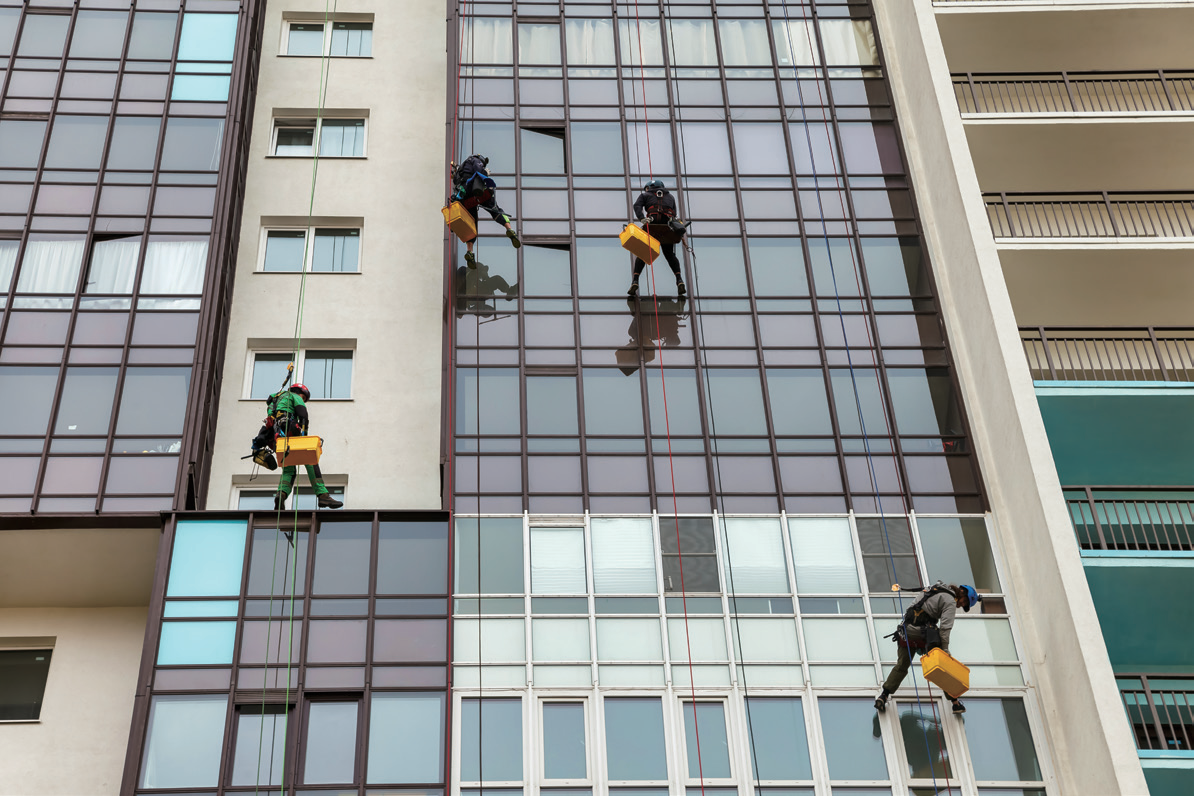

Aerial facade cleaning workflow
Application
Photovoltaic panel cleaning

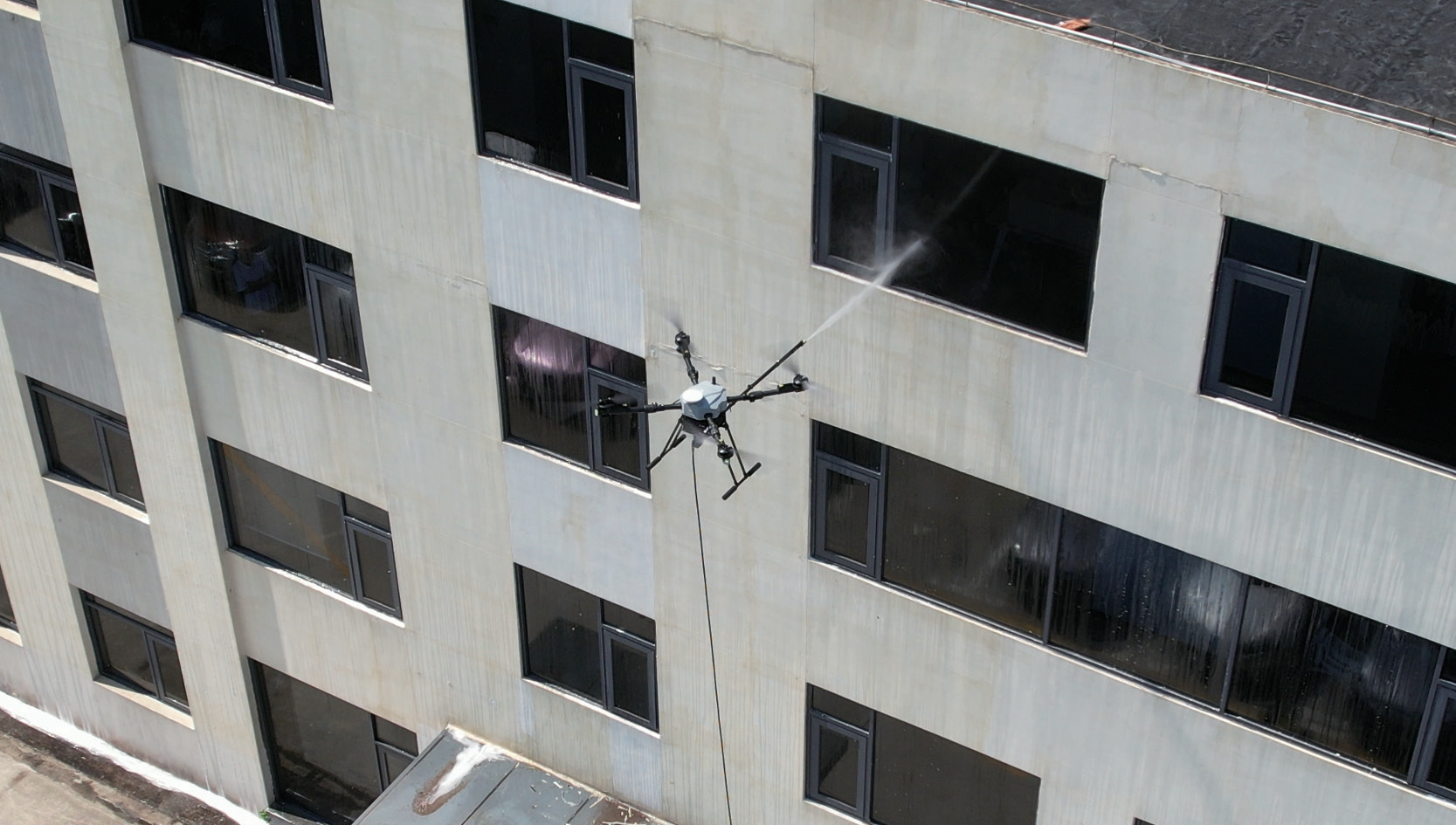

Building cleaning
Exterior facade and curtain wall maintenance

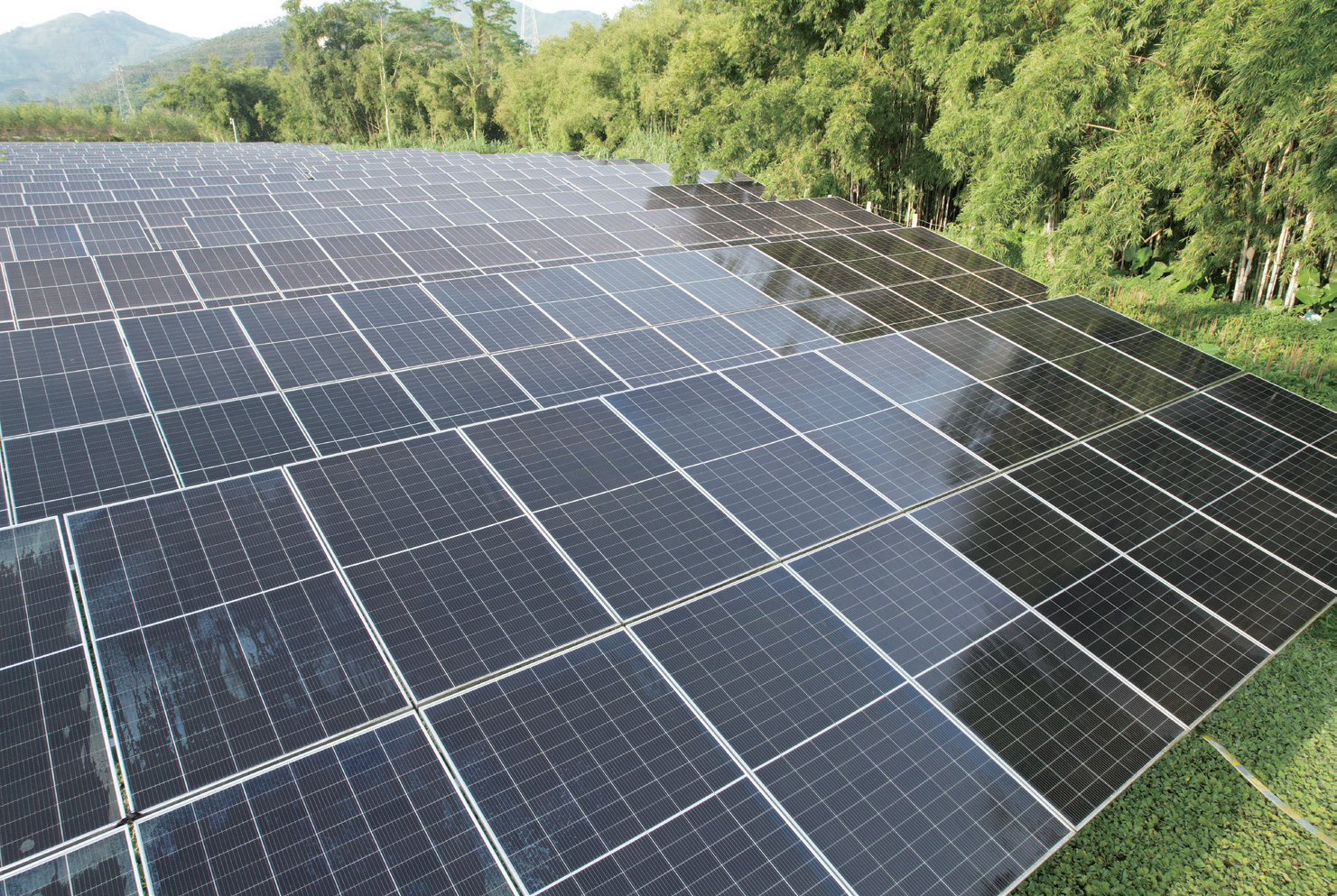

Photovoltaic cleaning
Large-area solar panel washing

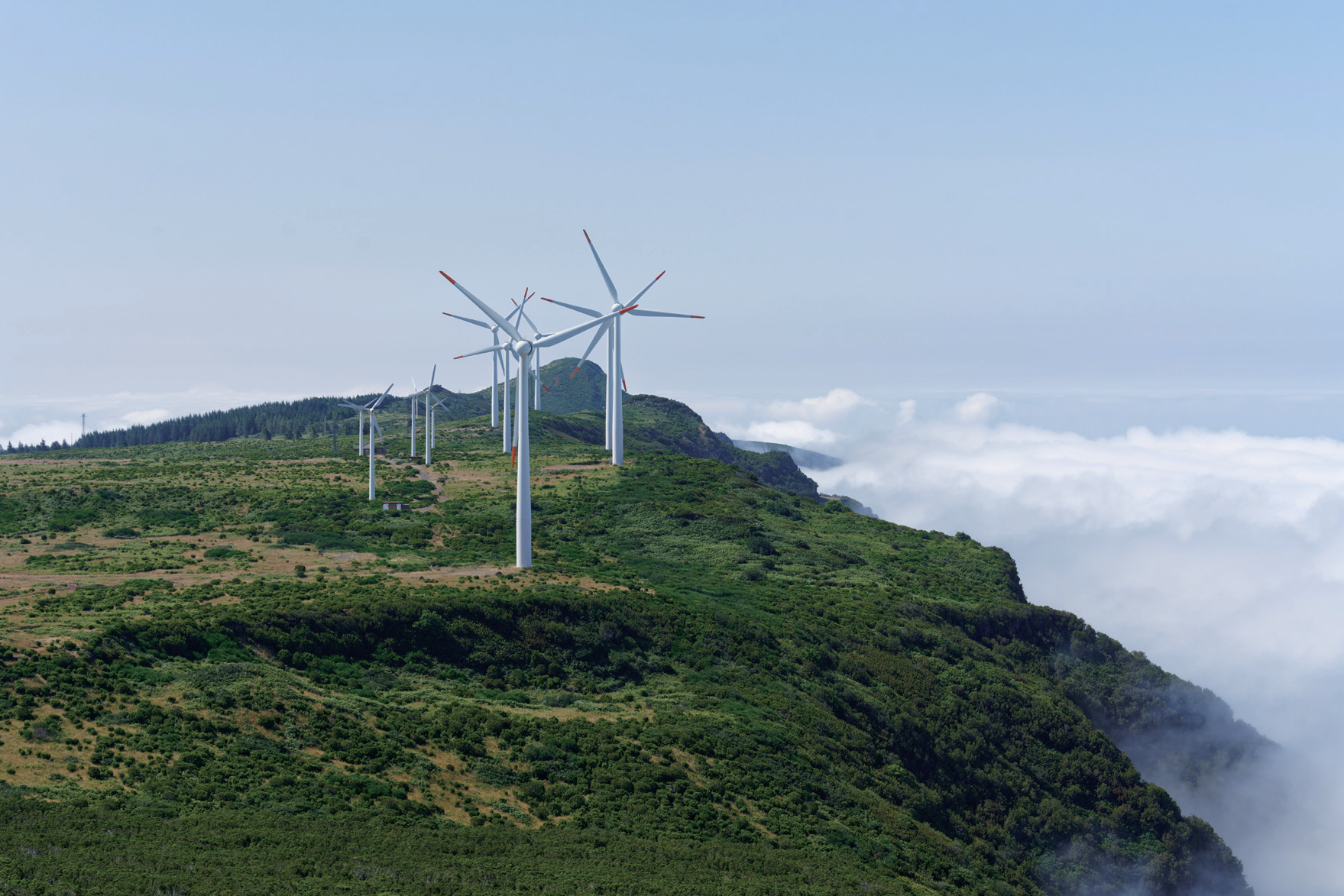

Wind turbine cleaning
High-altitude surface maintenance

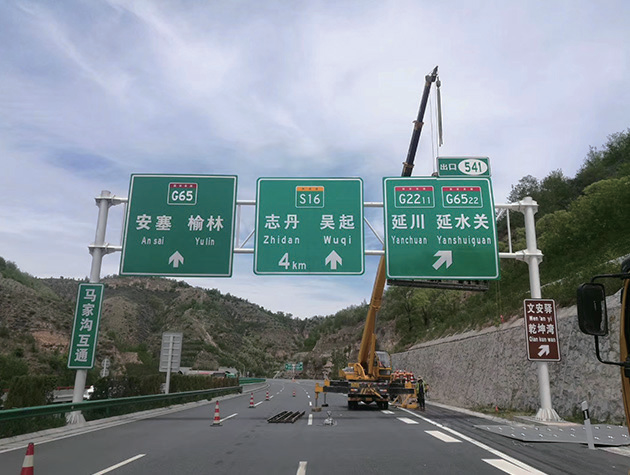

Highway sign cleaning
Hard-to-reach roadside infrastructure
Watch it work
D15R in action.
Before & after: outdoor facade.
The D15R product film.

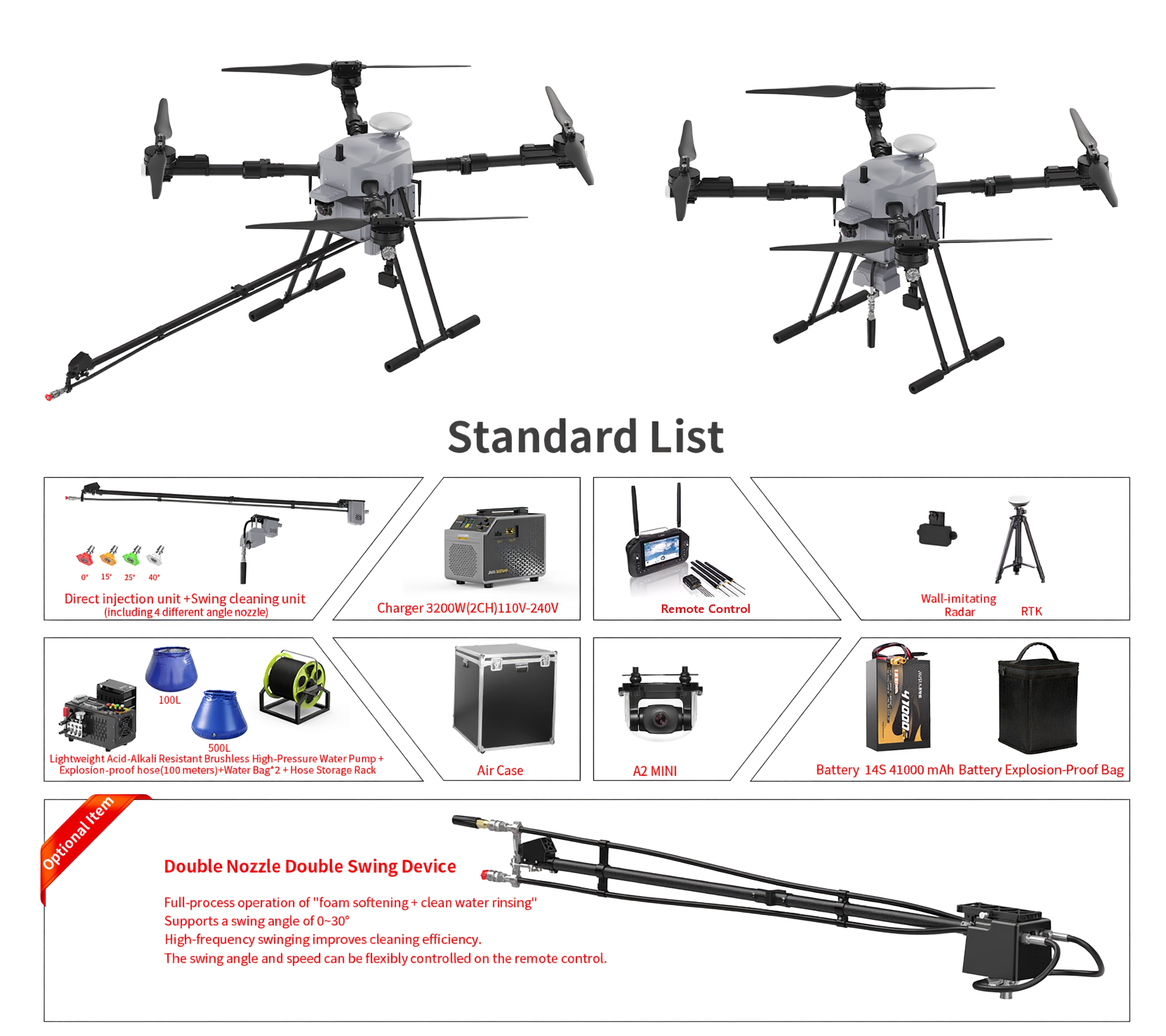

Standard package
Everything in the box.
Every D15R ships as a complete aerial cleaning system — drone, power, water supply and control, ready to fly out of the case.
- Direct injection unit + swing cleaning unit (4 nozzles: 0° / 15° / 25° / 40°)
- Charger 3200 W (2CH) 110-240 V
- Remote controller
- Wall-imitating radar
- RTK positioning module
- Brushless high-pressure pump + 100 m explosion-proof hose + 2 water bags + hose storage rack
- Air transport case
- A2 MINI camera
- 14S battery + explosion-proof battery bag
Optional: double-nozzle double-swing device
Full-process foam softening and clean-water rinsing, 0-30° swing angle and high-frequency swinging for higher efficiency — swing angle and speed adjustable on the remote control.
Product Parameter
D15R at a glance.
Specification values transcribed from the D15R product brochure V6.0.
ModelD15R
Overall dimensions (arms + propellers deployed)1945 × 1945 × 730 mm
Overall dimensions (arms deployed only)1150 × 1150 × 730 mm
Spray flow rate15 L/min
Hose length100 m
Flight time45 min curtain wall / 55 min PV / 30 min wind turbine
Nozzle-to-surface distance2-3 m (adjustable)
Battery14S 22000 mAh
Spray pipe1500 mm
Maximum horizontal flight speed15 m/s
Working temperature-10°C to 40°C
Operating humidity0-90%
Maximum wind speed12 m/s
Rated water pressure10 MPa
Max water pressure (instantaneous)20 MPa
Light cleaning1000 m²/h
Deep cleaning500 m²/h
Charging time40 minutes
Maximum take-off weight≤ 24.9 kg
Partdro Cleaning Drone Series D15R
Born for cleanliness.
Talk with Partdro about the right cleaning configuration, nozzle setup and application scenario for your project.
